Technology
Maximizing motorcycle and rider performance
with upgraded data loggers.

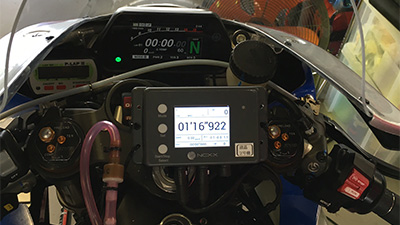

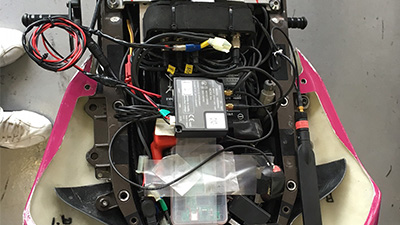

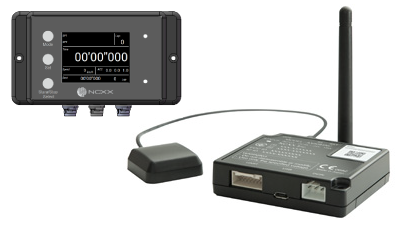

We upgraded our data loggers with transmission functions when we participated last year. With newly developed data loggers and a 3G data transmission device (AX8084NC), we can now acquire GPS, acceleration speed, gyro and other data in real time in deciseconds and lap time in milliseconds. By breaking down this data, it has become possible to conduct analyses of the strength of acceleration and deceleration, rake and other racing information.
With the upgrades…
- GPS
- Acceleration
- Gyro
Units of 1/10th second
- Lap Time
Units of 1/1000th second
…can now be measured!

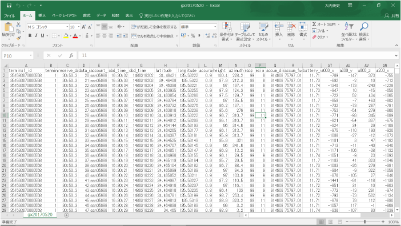

The data logger and transmission module are developed by NCXX, Inc., while the software that analyzes various collected data is developed by NCXX Solutions Co., Ltd. Using analyses of racing performance with newly added data and verification of stable transmissions, we strive to reach the finish line with both our excellent team and devices.

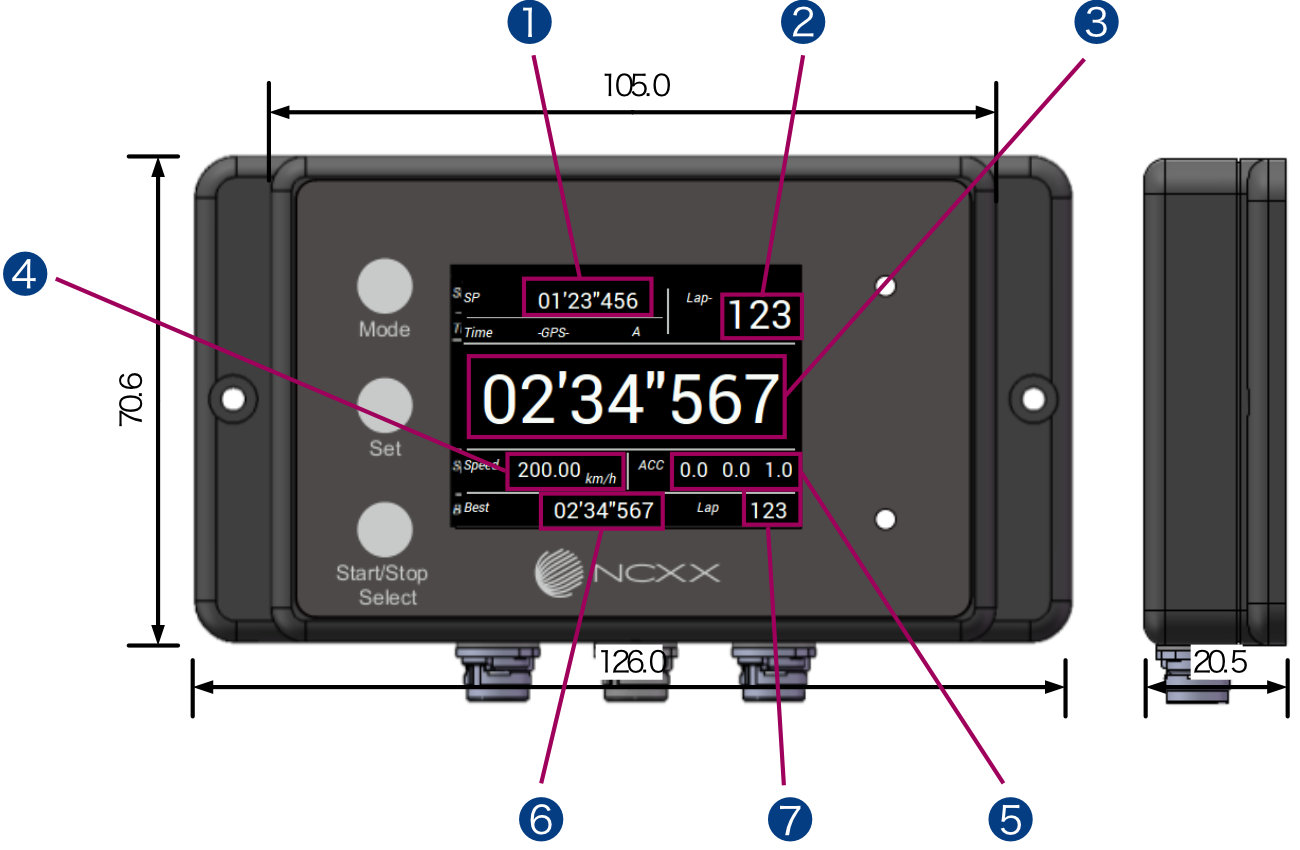

- Section time
- Number of laps
- Lap time
- Speed
- Acceleration
- Best time
- Best lap
| In/Out | Span | Notes | |||
|---|---|---|---|---|---|
| Input | GPS Module | Positioning data (latitude/longitude, heading) | 100 milliseconds | ||
| Acceleration sensor | X-axis, Y-axis, Z-axis | 100 milliseconds | |||
| Gyro Sensor | Roll-axis, yaw-axis, pitch-axis | 100 milliseconds | |||
| Magnetic sensors | Receives lap / section gate passes (H/L) | - | Precision 1/1000th second |
||
| Operating switches | Mode | Mode settings | |||
| Start/Stop | Start/Stop | ||||
| Set | |||||
| Output | LCD Display | Lap time | Display lap / section time * Times above 1/10th seconds are displayed as real time. |
Precision 1/1000th second |
|
| Displays number of laps | After passing through the gate | ||||
| Displays best time | |||||
| Displays section time | |||||
| Displays difference in section time | |||||
| Tires – Internal temperature | Displays temperature of front and rear wheels | ||||
| Server notification | GPS data | Positioning data (latitude/longitude, heading) | 100 milliseconds | ||
| Acceleration sensor | X-axis, Y-axis, Z-axis | 100 milliseconds | |||
| Gyro Sensor | Roll-axis, yaw-axis, pitch-axis | 100 milliseconds | |||
| Lap time | Display lap / section time | - | Precision 1/1000th second |
||
